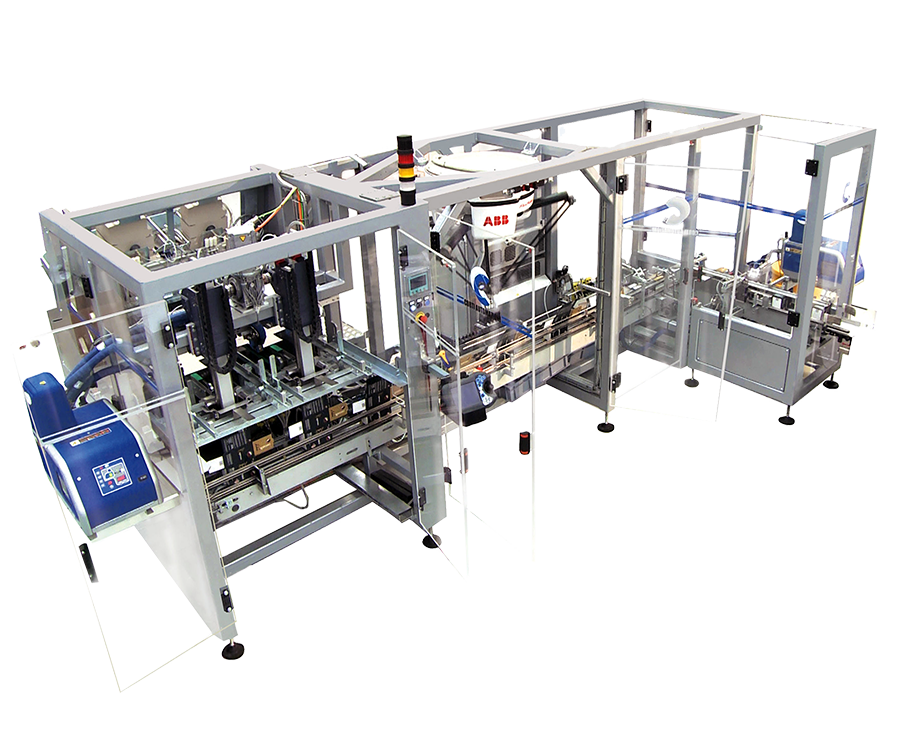

EASY LOADING PACKING MACHINE FC220

TECHNICAL SPECIFICATIONS

Easy loading packing machine of moulding boxes for loading and closing a 1 flopak pod
Speed production 360 flopak retail
Product dimensions min 20×60 mm – max 40×120 mm
Box dimensions min 80x150x50 mm – max 150x280x200 mm
Power 15 kw
Power supply 400v
Frequency 50hz
Termination hot melt

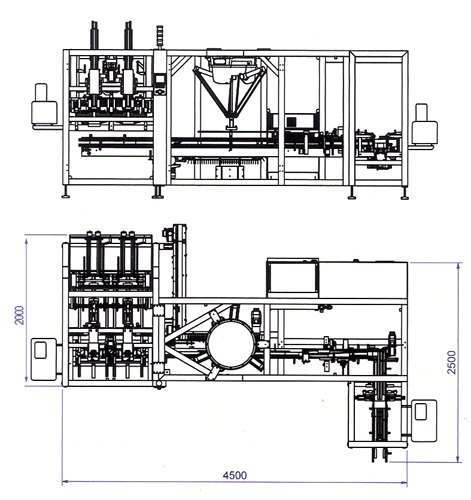

LAYOUT
